The shell of this series of chargers adopts integrated die-casting structure; the inner part of the charger adopts glue-filling process; it is suitable for flooded battery, sealed (VRLA gel) lead-acid batteries, lithium batteries, NI- MH batteries, NI- CD batteries, etc. It can be used for cyclic charging or floating charging of battery packs of electric cars, motorcycles, sightseeing cars, cycle charging cars, forklifts, communications, electric power, ships, etc.
Model：
Rated voltage of battery pack | Max.Output voltage | Max.Output current |
| 36V | 51V | 25A |
48V | 68V | 20A |
60V | 85V | 15A-20A |
72V | 102V | 12A |
| Protection function |
| Output over current protection | |
| Output over voltage protection | |
| Output short-circuit protection | |
| Output no-load protection | |
| Output reversal connect protection | |
| Input over voltage protection | |
| Input undervoltage protection | |
| Over temperature Protection of Charger | |
CAN Communication Fault Protection | |
| Auto power off while full charge |

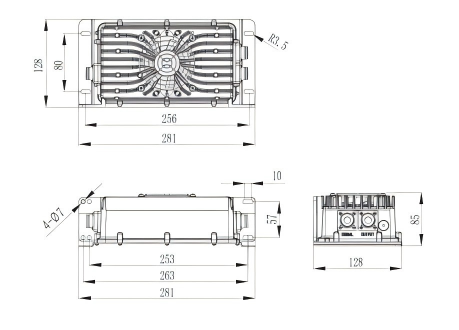

Body size：
Certificate
