The shell of this series of chargers is designed with a sealed structure; suitable for liquid-rich lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc .; It can be used for cyclic charging or floating charging of battery packs of electric cars, electric motorcycles, sightseeing cars, patrol cars, forklifts, communications, electric power, ships, etc.
Model
Rated voltage of battery pack | Max.Output voltage | Max.Output current |
24V | 34V | 20A |
36V | 51V | 20A |
48V | 68V | 15A |
60V | 85V | 12A |
72V | 102V | 10A |
 | Technical parameter |
| AC input voltage range:90-264VAC;45-65Hz | |
| AC Input Maximum Current:5.0A@100VAC;4.0A@220VAC | |
| Power factor:≥0.99 | |
| Power factor:≥0.99 | |
| Overall efficiency：≥94.0% | |
| Noise：≤45dB | |
| Grade of waterproof：IP67 | |
| Weight：1.2kg | |
| Operating temperature：-30℃-+65℃ | |
| Storage temperature：-40℃-+95℃ |

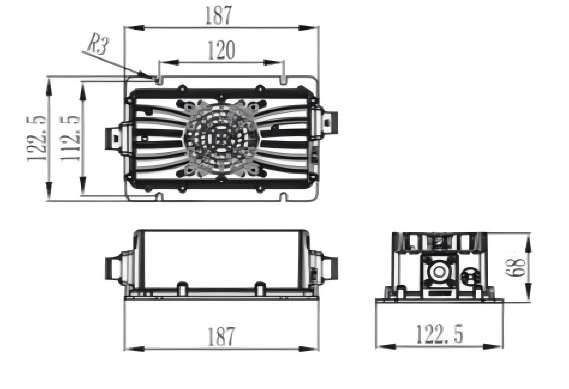

Body Size
PRODUCT CHARACTERISTICS | |
SAFE | Application of new technologies such as active PFC, LLC; reliable hardware protection and voltage and current self-test protection; perfect charging strategy Make sure the charging process is highly safe |
RELIABILITY | The shell adopts integrated die-casting mechanism; the machine adopts glue filling process; the active cooling fan adopts long life and glue filling structure design. Highly reliable product engineering design and years of industry verification, the charger can adapt to harsh use environments. |
FUNCTIONS | CAN bus; low voltage auxiliary 12V;Three-color indicator lights can be attached to the outside; charge lock (the vehicle power system can be locked through the dry contact of the relay during the charging process);To meet the charging requirements of various occasions. |
| Protection function | |
| Overheat protection | When the internal temperature of the charger exceeds the internal set value, the charging current automatically decreases;When the ambient temperature exceeds 65 ℃, the charger is shut down for protection. When the temperature recovers, the charging will be resumed automatically. |
| Protection for Reverse Connection of Batteries | The circuit inside the charger shuts down with batteries when the batteries are connected reversely and will not damage the charger. |
| NO-load Protection | There is no output when the batteries are not connected. |
| Short-circuit protection | When the output is short-circuited, the internal circuit of the charger is disconnected from the battery, and charging can be resumed only when the battery is reconnected after the fault is removed. |
| Automatic shutdown when fully charged | Automatic shutdown when fully charged. |
Certificate
